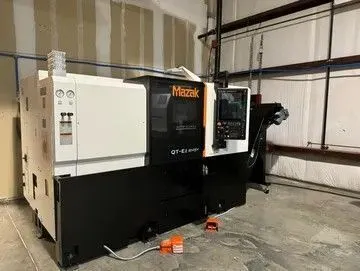

Used MAZAK QT-EZ 8MSY | CNC Lathes

Standard Chuck Size (Main/Second)……………….….. 8” / 5”
Maximum Swing.……………………………………………….. 27.4”
Standard Machining Diameter……………………………. 9.25”
Maximum Machining Diameter.…………………………. 13.5”
Maximum Machining Length …………………….………. 20.78”
Standard Bar Capacity………………………………….……. 2.00”
Maximum Support Weight (1st & 2nd spindle)…….. 440 Lbs
Spindle Motor (30min rating)……………………………. 20 HP
Spindle Bore………………………………………………………. 2.4”
Spindle Speed……………………………………………………. 5,000 RPM
Spindle Nose……………………………………………………... A2-6
Number of Tools………………………………………………… 12
Tool Size (outside / inside)…………………………………. 1.0” / 1.5”
Turret Index Time (one/full)……………………………….. 0.19 sec/0.69 sec
Mill Spindle Motor……………………………………………… 7.5 HP
Mill Spindle Speed………………………………………………. 6,000 RPM
Travel (X/Y/Z) ………………………………..………….……….. 8.5” / 4.00” / 23.75”
Feed Axis Rapid Traverse (X/Y/Z)……….….…………... 1181 / 394 / 1417 IPM
Second Spindle Speed.……………………………………….. 6,000 RPM
Second Spindle Nose………………………………………….. A2-5
Second Spindle Motor (40% ED)……..………………….. 10 HP
Machine Height……….,……………………………………….. 67.9”
Floor Space……………………….………………………………. 102.4” x 75”
Machine Weight………………….……………………………. 12,125 LBS
