New KINGSTON SPX40 X 4000 (14.7") | CNC Lathes

Description

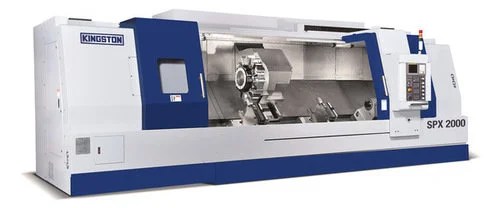

The SPX-40 is Kingston’s newest and beefiest entry in its large-format slant bed line. With 40.5” swing over bed (35.4” max turning), bed lengths to 200”, and available bore sizes up to 14.7”, the SPX-40 is a powerful – yet versatile – beast that delivers under the heaviest loading and cutting conditions. Optional C-Axis and Y-Axis capability combined with the APT 60 V12 Live Tooling Turret puts the SPX-40 in a league of its own in terms of large-swing and big-bore milling and drilling operations on a slant bed lathe. Our 12-position servo turret is specially designed with a 2-piece large diameter Hirth-type coupling for strong clamping force and high-loading capacity while delivering precise positioning. Each SPX is run by Fanuc’s reliable 0iTF controller with Arbitrary Speed Threading included as standard.
