New MAZAK INTEGREX I-300-1500U | Multitasking Machining Centers

Description

MACHINE DESCRIPTION:

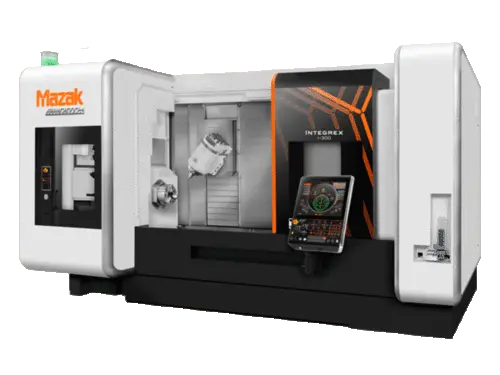

The INTEGREX i-300 advanced Multi-Tasking machine delivers maximum versatility, high precision and throughput for medium to large complex parts. It combines the capabilities of a high-powered turning center and full-function machining center to produce parts in single setups. This machine configuration works to minimize fixtures, tools, handling and non-cut time.

Additionally, the machine brings dramatic reductions in lead-time and improves part accuracy through the elimination of multiple setups. With full 5-axis machining capability, the machine easily processes fully prismatic parts from solid blocks or castings (chucked or bar fed), round parts, or highly contoured parts.

MACHINE CHARACTERISTICS:
Milling spindle travel -30 ~ 210 degrees (.0001 degree min index angle)
Optional 20k RPM (15 HP) milling spindle available
Full C-axis contouring (.0001 degree minimum index)
Programmable NC Tailstock
Available spindle connections ( KM63/ CAPTO C6 / HSK A63 )
36-tool ATC standard ( HSK A63 ) – 72 or 110 tool options available
Multiple bed lengths available – 40”, 60”
