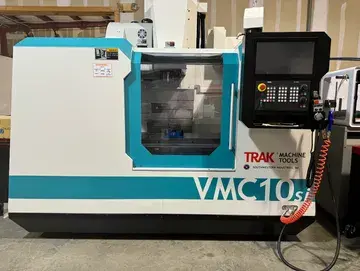

New TRAK VMC10si | Vertical Machining Centers

Table Size 44.09” x 19.69”
T-slots (number x width x pitch) 5 x .709” x 3.937”
Travel (X, Y, Z axis) 40” x 20” x 20”
Travel (X, Y, Z axis) w/ Soft Limits 40.35” x 20.24” x 20.24”
Spindle Taper 40 Taper
Spindle Speed Range (RPM) 10 – 12,000 RPM
Spindle Nose Diameter 3”
Diameter of Spindle 60 mm
Spindle Bearing Sizes 95 x 60 x 18 mm
Tool Clamping Force (90 psi) 1,500 lbs.
Tool Holder Type CAT 40 Standard, BT40 Optional (must change ATC arm)
ATC Tool Capacity 24
Maximum Tool Weight (incl. holder) 17.6 lbs. (8 Kg)
Maximum Tool Diameter 3.07”
Maximum Tool Length 11.81”
Arm ATC Tool Change 2.5 seconds
Spindle Motor HP (peak) 41.5 HP (31 KW)
Spindle Motor HP (continuous) 20.1 HP (15 KW)
Power Requirements (480 volts, phase,
current)
480V (432-528V is acceptable), 3P, 41A
Power Requirements w/ Transformer option
(volts, phase, current)
208V with transformer (200-240V is acceptable), 3P, 94A
Maximum Weight of Workpiece 1,760 lbs.
Height of Table from Bottom of Floor*** 38”
Min. Spindle Nose to Table Distance**** 3.5
Max. Spindle Nose to Table Distance**** 23.5”
Distance of ATC Arm to Table 20”
Spindle Center to Spindle Head Casting Face 18.25”
Min. Machine Height*** 93.5”
Max. Machine Height (head all the way up)*** 108”
Overall Width of Machine (w/ side doors open,
chip conveyor in place but no chip bin which
adds width)
177”
Overall Length of Machine (w/ electrical
cabinet fully open 180° and pendant enclosure
rotated 90⁰)
150.25”
Footprint of Machine w/ Chip Conveyor/Coolant
Tank in Place & Pendant Enclosure Not Rotated
90° (w x l)
144” x 112”
Weight Net 9,900 lbs.
Weight Ship 10,250 lbs.
Rapid Traverse X, Y, Z 1,000 ipm
Cutting Max Speed X, Y, Z 1,000 ipm
Coolant Capacity 60 gallons
Coolant & Coolant Wash Pump 750 watts
Air Pressure 90 psi 2.5 CFM or 18 psi SCFM
Air Quality Air dried/water separator upstream of VMC
Lubrication Pump Capacity 2 liters
