New MAZAK QT-EZ 8MSY | CNC Lathes
Have one to sell?
ConditionNew
New

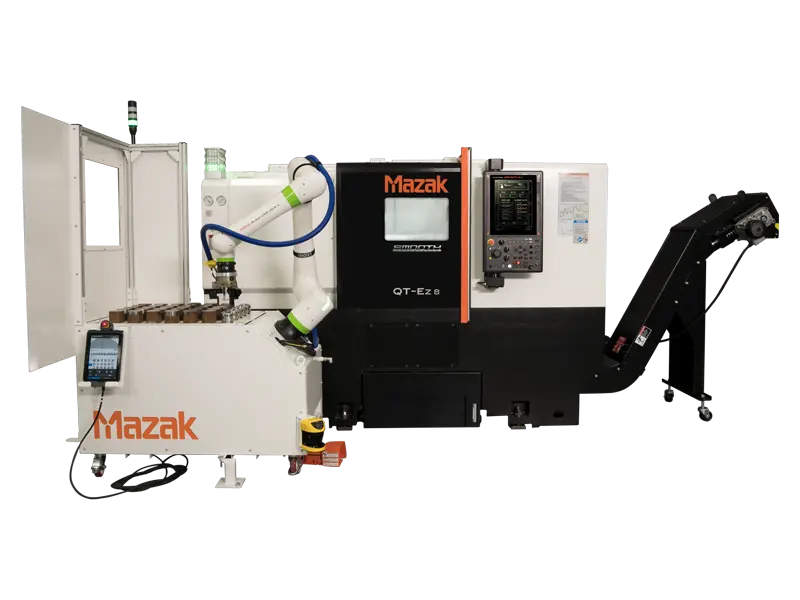

Introducing the MAZAK QT-EZ 8MSY CNC Lathe - new condition. Features include 27.40 in max swing, 6000 rpm main and second spindles, and 12-tool turret. Max machining diameter: 13.5 in; max bar work capacity: 2.0 in. Precision and performance for your workshop.
Capacity
Maximum Swing 27.40 in / 695 mm
Maximum Machining Diameter 13.500 in / 340 mm
Maximum Bar Work Capacity 2.0 in / 51 mm
Maximum Machining Length 22.400 in / 567 mm
Main Spindle
Chuck Size 8 in / 203 mm
Maximum Speed 6000 rpm
Motor Output (4 minute rating) 20.0 hp / 15 kw
Second Spindle
Chuck Size 5 in / 127 mm
Maximum Speed 6000 rpm
Motor Output (4 minute rating) 10.0 hp / 8 kw
Turret (Upper)
Number of Tools 12
Maximum Speed 6000 rpm
Motor Output (3 minute rating) 7.5 hp / 5 kw
Feed Axes
Travel (X Axis) 8.50 in / 216 mm
Travel (Y Axis) 4.00 in / 100 mm
Travel (Z Axis) 23.75 in / 605 mm
Travel (W Axis) 22.87 in / 580 mm
